40M DLC/UPC to DLC/UPC Multimode Base Station RRU BBU CPRI Outdoor Optical Fiber LC Patch Cord

Name: 40M DLCUPC to DLCUPC Multimode Base Station RRU BBU CPRI Outdoor Optical Fiber LC Patch Cord
Brand: Haiyu Optical
Price: 21.99 USD

40M DLC/UPC to DLC/UPC Multimode Base Station RRU BBU CPRI Outdoor Optical Fiber LC Patch Cord Manufactures

Place of Origin : Guangdong, China

Brand Name : Haiyu Optical

Model Number : HYG-RRU-DLC-MM-020

MOQ : 10-49 Pieces

Price : $21.99

Certification : ISO9001, CE, ROHS

Packaging Details : CABLE ROLL AND CARTON

Type : Fiber Optic Cable, Outdoor

Single-Mode Fiber : G657A2

Multi-Mode Fiber : OM2

No. of Fiber : 2.

Use : FTTA

Cable mode : Multimode 50/125um

Wire diameter : 7.0 mm

Insertion loss : <=3.0 dB

Return loss : >=35 dB

Connector type : DPL/PC

Operating temp range : -40~85°C

Wavelength : 850 nm

Length : 40M

Product name : Fiber Optic Patch Cord

Selling Units : Single item

Single package size : 35X35X20 cm

Single gross weight : 2.500 kg

Package Type : carton

Contact Now

40M DLC/UPC to DLC/UPC Multimode Base Station RRU BBU CPRI Outdoor Optical Fiber LC Patch Cord

Product Description

Optical Cable Assembly, DLC/PC, Singlemode 9/125um (Multimode 62.5/125, 50/125),

GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable

(ARMOURED TYPE) Length= 5m, 10m, 20m, 30m, 40m, 50m, 70m, 100m, 150m, 200m...

With the continuous development of optical fiber communication technology, 3G commercial trial network, high-speed local area networks and optical access network such as the market that is a sustained manner. Especially in the 3G, 4G, and WiMax base stations and fiber-optic distributed zoom technology, ODLC fiber optic cable connector assemblies are rapidly becoming the standard connector interface.
DLC fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.

Item		Description	Standard
Cable Model		GYFJH-4B1 / GYFJH-2B1 / GYFJH-2A1
Number Optic-cable Core		2
Weight Kg/km		45.0
Outside Dia. mm		Φ7.0±0.2
Outer Sheath	material	LSZH	YD/T 1113-2001
	color	BLACK
	thickness	1mm
Tight buffer	material	FRP
Tight buffer	Dia. mm	Φ1.0±0.1
Subunit	Quantity(pcs)	2
	Sheath Dia.	Φ2±0.1mm
	Sheath Material & Color	LSZH & yellow
	Reinforced core	aramid fiber
	Mark Unit	Differ A,B,C and D fiber within 10mm	GB/T 6995.2
Fiber core	Fiber Type	G.652D
	sheath color	white
	Sheath material	LSZH
	Out-Dia fiber for Tight layer	0.90±0.05 mm
	Fiber specification	9/125(G652D)
Allowable Tension		Short term ≥500N
Allowable Tension		Long term ≥300N
inflaming retarding Class		Confirm to IEC60332-3C
Mini Bending radius		10D
Fiber Cable Printing		Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date
Working life		≥25years

*all materials confirm to RoHS

Features

* IP65 protection, salt-mist proof
* Easy, reliable and cost-effective installation

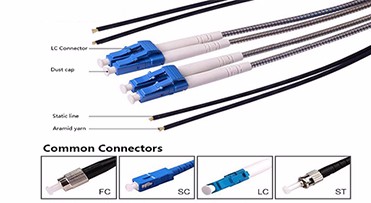

* The connector of side-A is duplex LC, and side-B can be LC, SC or FC
* Thread structure guarantees the trusted connection

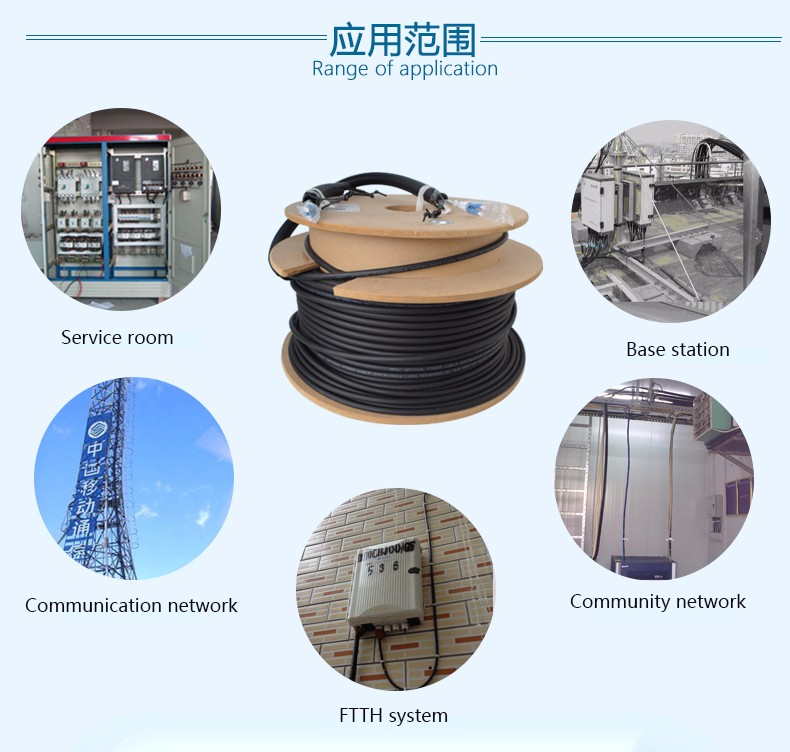

Applications:

3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
TTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE

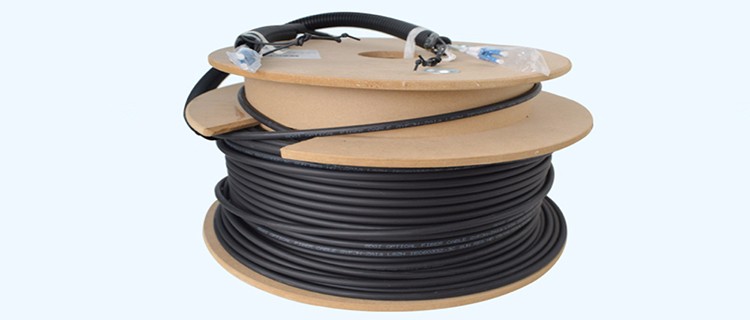

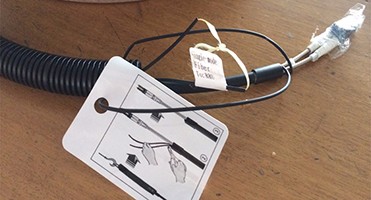

Detailed Images

Click here to see more products.

Packing & Delivery

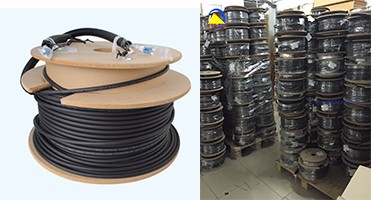

Reliable Package.

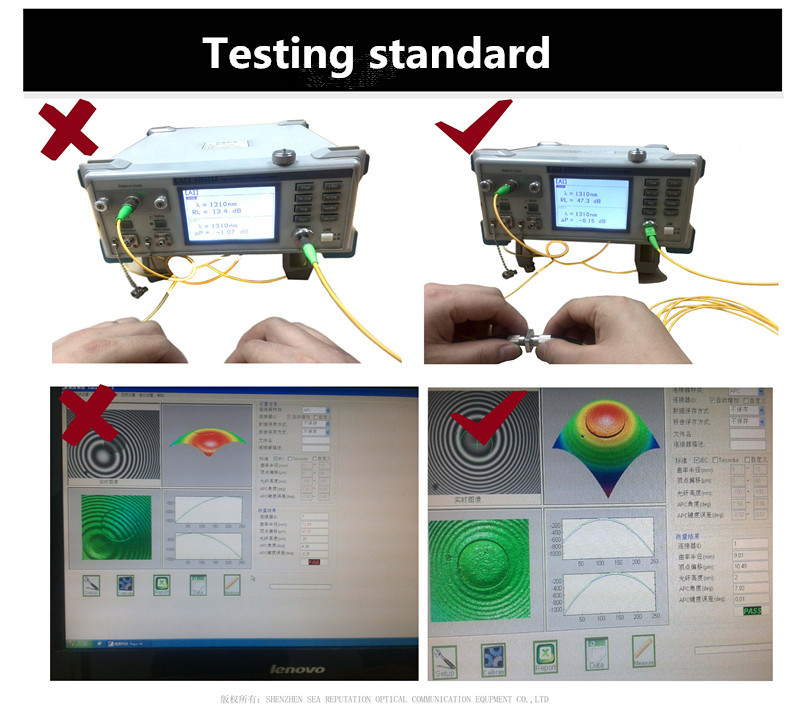

Each cable good packed in roll with label and test report, then use high quality carton to protect from strike and water.

Fast Delivery.

Fast and safty delivery cooperated with alibaba. 1~4 days to USA, 1~2 days to Japan, Korea and Southeast Asia, 4-7 days to Europe, South America and Africa.

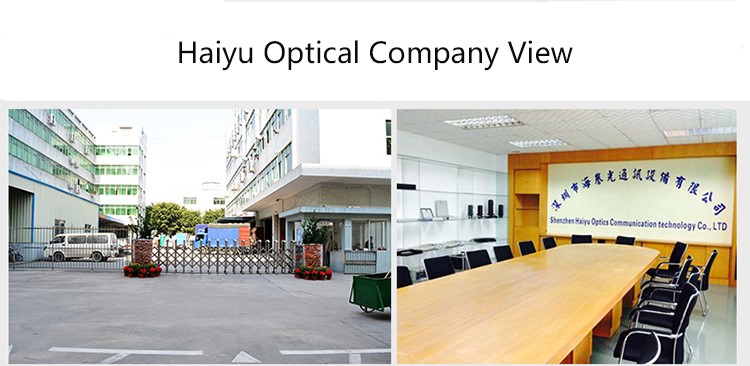

Our Company

Haiyu Optics, founded in 2007, is focus on design and manufactured fiber optic communication products. It has developed a range of
products including fiber optics like patch cord, adapters attenuator and splitters, optical transceiver modules, media converter, video
transmitter &receiver and FTTH equipments. Widely used in telecom communication, mobile communication, network solution and television

Milestones
2007 Haiyu optics communications technology co., ltd was established in Hongkong.
2009 Shenzhen Haiyu optics communication equipment co., ltd was established in Shenzhen China

Plant area and No. of employees
Amount 2,000 Square meters, around 300 employees in total.

Quality Assurance

Our ISO9001:2008 certified quality management systems have been refined for flexibility and efficiency, and produce a high quality, high
reliability, low cost and diverse product range.

All our products are compliant with Rohs , CE and 5S system.

Click here for more.

OEM & ODM is accepted, any questions welcome to contact us.
