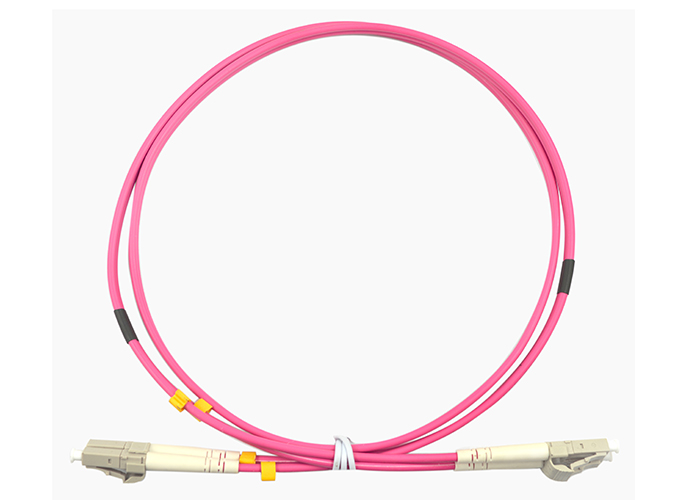

OM4 LC LC Fiber Patch Cord , High Speed Fiber Optic Cable 35dB Return Loss

Name: OM4 LC LC Fiber Patch Cord High Speed Fiber Optic Cable 35dB Return Loss
Brand: Haiyu Optical
Price: 1 USD

OM4 LC LC Fiber Patch Cord , High Speed Fiber Optic Cable 35dB Return Loss Manufactures

Brand Name : Haiyu Optical

Model Number : HYG-PA-OM4-003

Certification : CE, ISO9001, Rohs

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs per day

Delivery Time : 2-3 working days

Packaging Details : each packed in pe bag, 400-600pcs/carton

Product name : LC-LC Multimode Fiber Patch Cord

Fiber type : MM OM4 50/125

Connector type : LC UPC

Length : 1m 2m 3m or Customized

Insertion loss : ≤0.3dB

Material : PVC/LSZH

Return loss : >=35 dB

Wavelength : 850 nm,1300nm

Fiber count : Duplex

Application : Communication Equipment,FTTH System

Contact Now

OM4 High Speed Optical Cable LC-LC Multimode Fiber Patch Cord

Specification:

Connector type	FC,SC, ST, LC,MU,MTP,MPO,E2000D4,DIN,MTRJ
Fiber type	OM4 50/125 10G
Operation wave length	850nm or 1300nm
Insertion loss	≤0.3db
Return wave loss	≥35db
Mechanical testing	Vibration:10-55hz,0.75mm single amplitude,30min each direction Drop test Drop highth:1m, fiber longth:1m, drop time:5 times Durability 1000 times Anti-pull power :90N
Storage temperature	-40-+80°c
Operation temperature	-40-+75°c

Features:

1.Using high precision ceramic ferrule

2.rubbing exactitude and testing completelly

3. low insertion loss and high return loss

4. high stability and repeat

5.be according with the telcordia GR-326-CORE standard

6.ferrule:excellent quality and high intensity zirconium dioxide ceramic ferrule

Product application:

1. Local Area Network

2.Data communication network

3.Telecommunication optical transmission network

4.Optical access network(OAN)

5.Active device termination
